LiveRamp Audiences Destination

LiveRamp gives companies and their partners the power to connect, control, and activate data to transform customer experiences and generate more valuable business outcomes. Segment’s integration with LiveRamp lets you push user audiences created in Twilio Engage into your LiveRamp account to execute various marketing use cases.

The LiveRamp Audiences destination allows users to connect their Engage Audiences to LiveRamp through their SFTP or a customer-managed S3 cloud storage bucket. Users will be able to configure their delivery preferences within Segment.

The LiveRamp Audiences destination can be connected to Twilio Engage sources only.

Getting started

Set up your file drop

SFTP

1. Contact your LiveRamp representative to gain a set of SFTP credentials.
2. Connect to the SFTP server using the client of your choice, and create a new folder under /uploads with the name of your audience.

S3

1. Create a new S3 bucket.
2. Create a new IAM Role with PutObject access to the S3 bucket.
3. Create a new IAM User and assign them the role.
4. Generate a new Access Key pair for the user and note them down; you’ll use it for the settings.

Connect LiveRamp Audiences

1. Create and configure your Engage Audience.
2. Navigate to Engage > Engage Settings > Destinations and click Add Destination.
3. Select LiveRamp Audiences, select your Audience Space as the source, and name your destination.
4. On the Mappings tab, click Add Mapping and choose whether your will be using S3 or SFTP to upload the files. Within the mapping, configure which fields from your payload will be included in the files.
5. Enable the destination and configured mappings.
6. On the Engage > Audiences > (your audience) page, click Add Destination and select the destination just created.
7. Disable Send Identify and Enable Send Track. Keep event names as they are.
8. File a support case with the LiveRamp team to configure and enable ingestion.

No settings available. The destination may not be publicly visble.

Available Actions

Build your own Mappings! Combine supported triggers with the following -supported actions:

Public Beta instructions

• The Segment team will need to enable the feature for your Engage spaces.
• Once you agree to join the public beta, Segment will enable all Engage spaces that are part of your Segment workspace.
• New Engage spaces you create won’t automatically be enrolled. Contact Segment to get these spaces enrolled.

Limitations

• Audience must have at least 25 unique members, otherwise the destination will fail and the data will not be synced.
• Audience sync happens once per day.
• Audience sync is a full sync.
• Files are created per audience.
• After initial ingestion is complete, changing the mappings will cause the LiveRamp ingestion to start failing until ingestion setup is run again.

Trait Enrichment

Use Trait Enrichment to access Segment profile traits when you sync Audiences to Destinations. With Trait Enrichment, you can use custom, SQL, computed, and predictive traits to enrich the data you map to your destinations.

Trait Enrichment setup

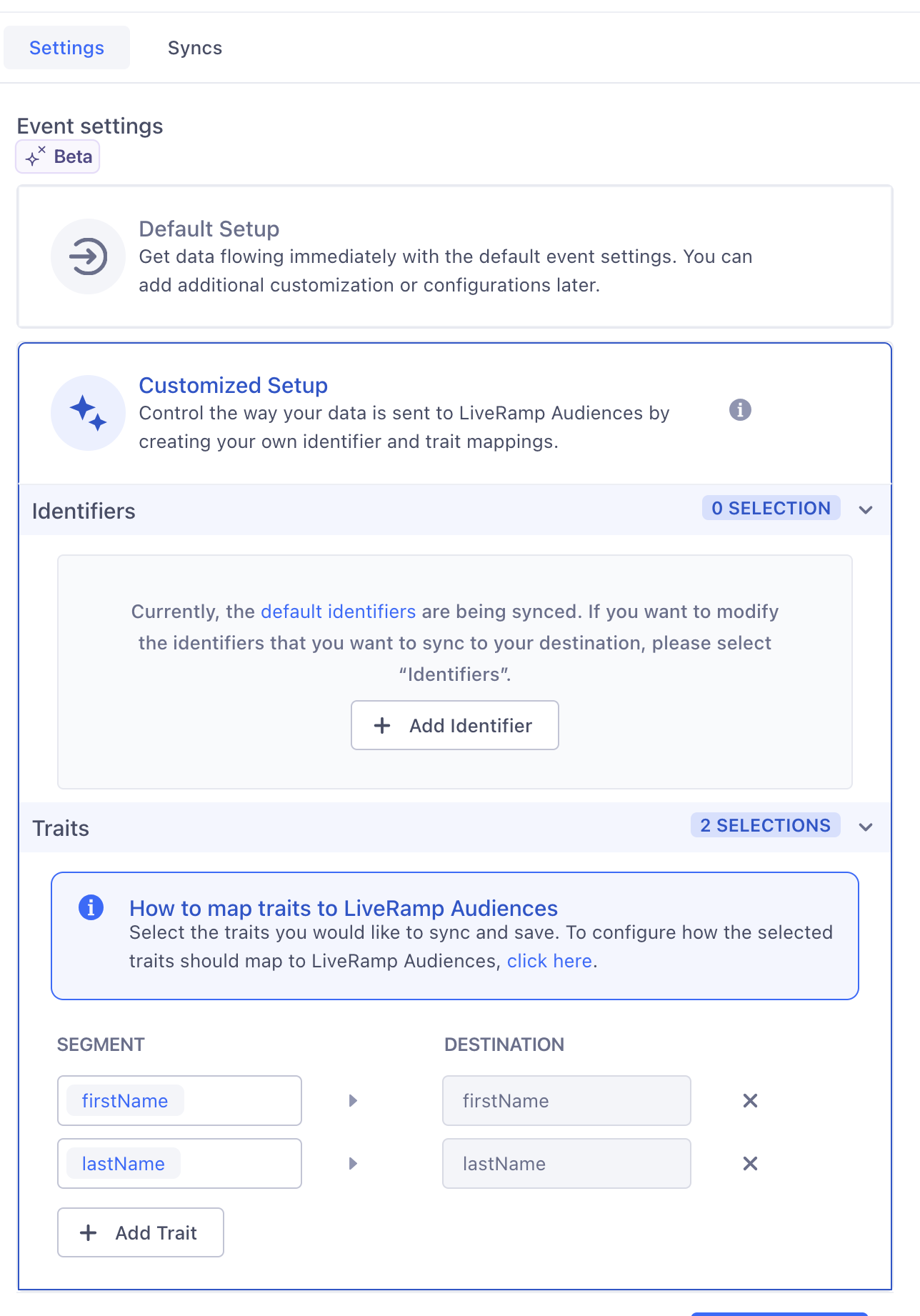

1. Confirm that Send Track is toggled on and select Customized Setup. Select Add Trait, select the traits you want to sync, and click Save.

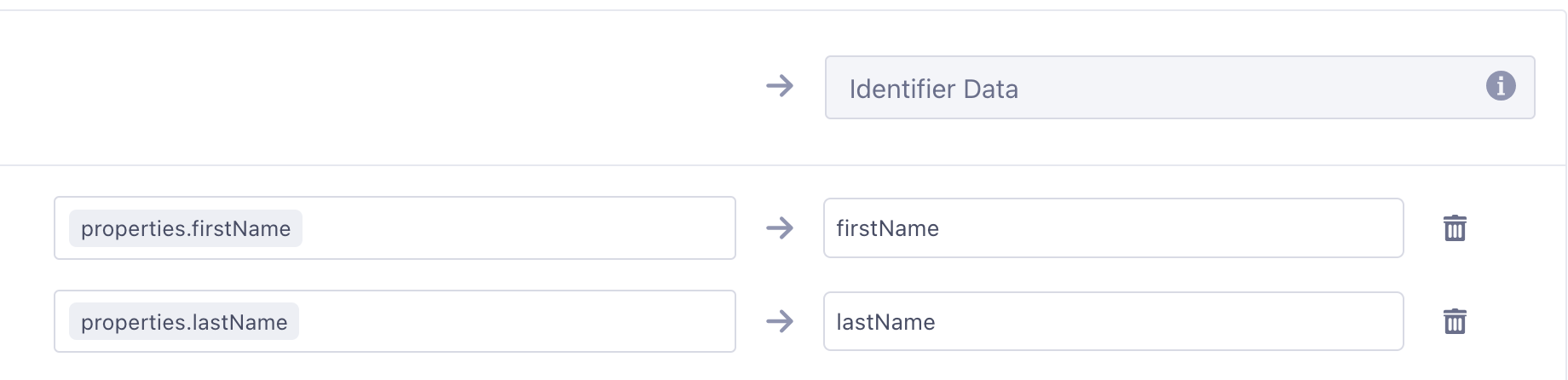

1. Update the Identifier Data Field in your destination Audience Entered Mapping (either SFTP or S3).
   • To update a trait field mapping, click on the Select event variable section and in the dropdown search for properties, followed by your trait. For example, properties.firstName. If no matches are found, use properties.TRAIT as an event variable.

For best results with Trait Enrichment, Segment recommends the following:

• Use Trait Enrichment with new audiences.
• Use smaller audiences for real-time use cases, as data delivery is slower for large audiences.
